Mechanical structure for the CAM integration, with united power transmission instead of traditional chain driven, that makes the machine more durable and easy for maintenance.
FUNCTIONAL FEATURES:
1. Controlled by PLC
2. Fully- automatic, easy operation
3. 5.7 inch Color interface
4. All components are from international brand
5. Each movements with sensor detection
DESCRIPTION:

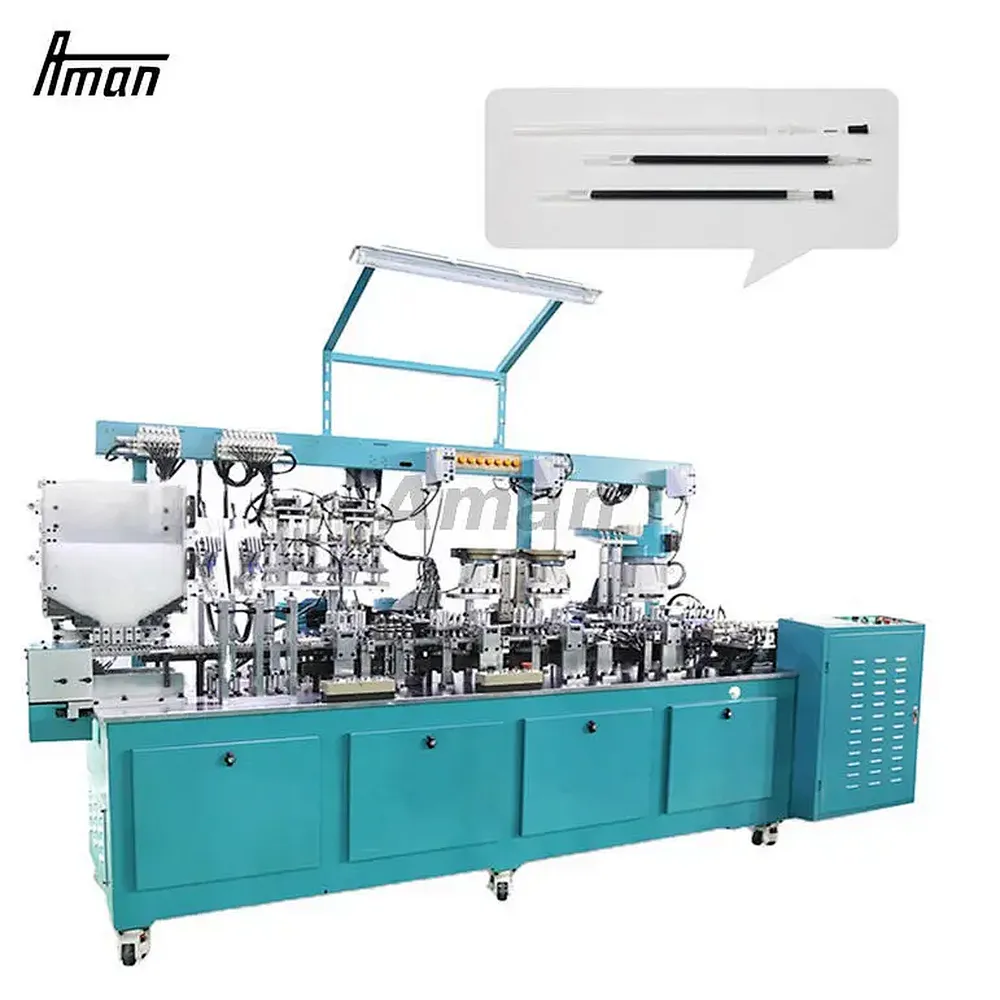

This device is controlled by PLC with 5.7 inch of humanized color operation interface, using frequency control system which is simple for the users to operate, and effectively improve working efficiency.
Mechanical structure for the CAM integration, with united power transmission instead of traditional chain driven, that makes the machine more durable and easy for maintenance.
PROCESSING STEPS:
Tube feeding=>ink injection=>tip assembling =>sort out the defective ones0=>collecting
ASSEMBLED PARTS: Tube, ink, tip fitting
Capacity: 180~220pcs/Min
Assembly mode: 4 Outputs/Time, Horizontal type
Dimension:3400 X 1400 X 2500mm(length/width/height)
Brands of Main Parts | |
Magnetic valve | SMC Japan, AirTAC Taiwan |
Cylinder | SMC Japan, AirTAC Taiwan |
FRL | SMC Japan, AirTAC Taiwan |
Barometer | SMC Japan |
Key electric components | Mitsubishi, SANYO, Schneider |
